Tripod Turnstile

ll RIGEL USA turnstile gates can easily be integrated with virtually any access control system All RIGEL USA turnstile gates are built with self-designed mechanical structure for stable and long-time operation.



Standard model RIG-T-406
Turnstile type Tripod turnstile
Cabinet material 304 stainless steel
Arm material 304 stainless steel
Finish Stainless steel satin finish

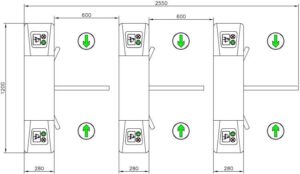

Dimension 1200*280*1000mm (L*W*H)
Passage width ≤550mm
Direction Single / bidirectional
Function Fail safe
Power supply AC110–220V, 50/60Hz
Working environment Indoor & outdoor
LED indicator Yes
Drive type Solenoid (semi-automatic)
  • Standard
  • Warranty: One year for electric parts, two years for mechanical

Material 316 stainless steel
Dimension Customized
Drive type Brush motor (auto)






Access control board

 Can used offline
Offline storage 100,000 records
30,000 user registration
TCP/IP communicatoion
Connect IC/ID card reader,
QR code scanner
fingerprint,face recognation
IC card reader Yes
IC card register Yes
IC card Yes
QR code scanner Yes
Biometric verification Fingerprint
Face recognition



All RIGEL USA turnstile gates can easily be integrated with virtually

any access control system



All RIGEL USA turnstile gates are built with

self-designed mechanical structure for stable and long-time operation.





Call for Quote
