RF SERIES- FLEXIBLE SCREEN

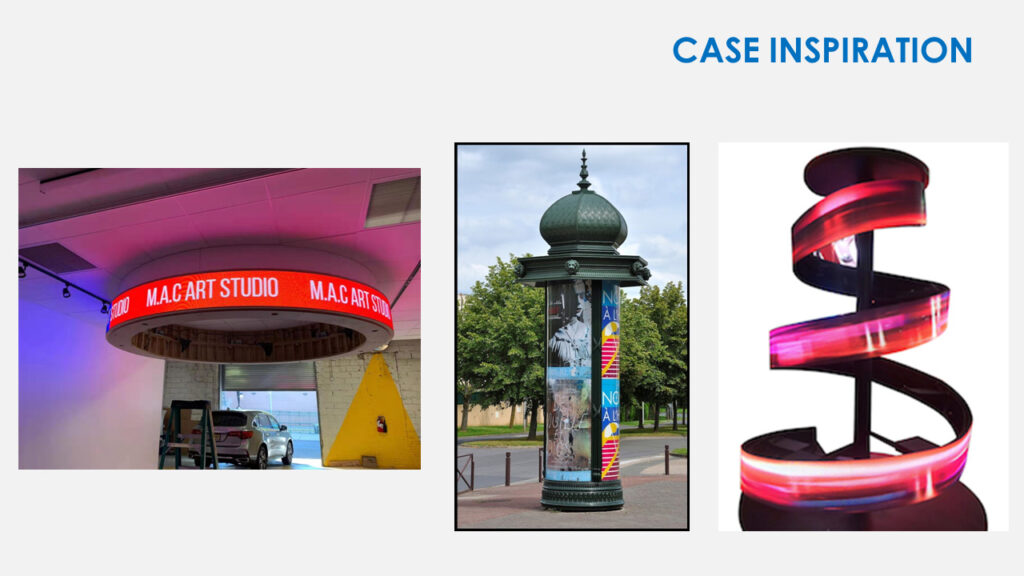

Model: P1.875, P2, P2.5, P3, P4 Application: Only for indoor use. Hotel lobby, bar, large building load-bearing beams in super shopping mall, etc.

Features:

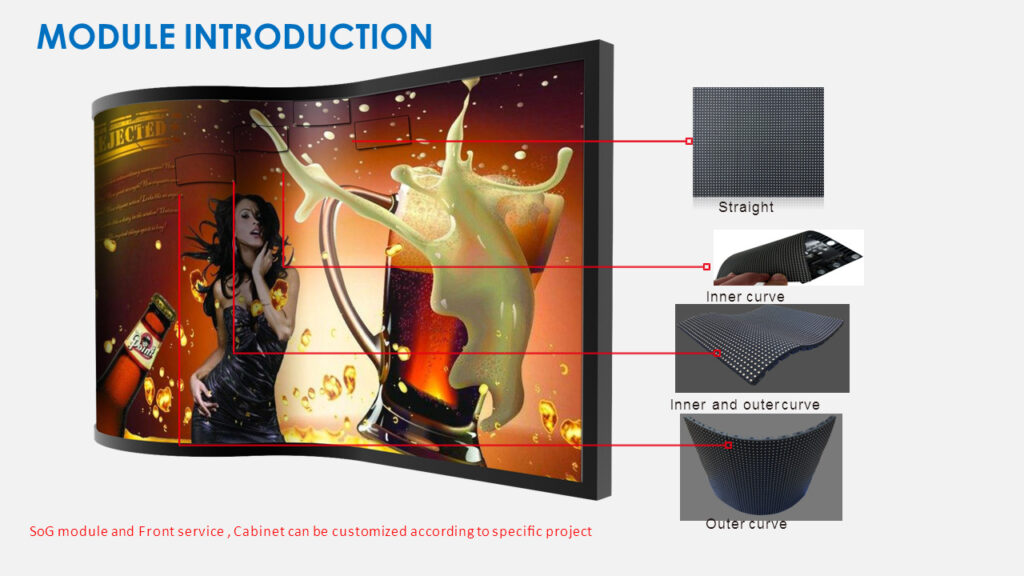

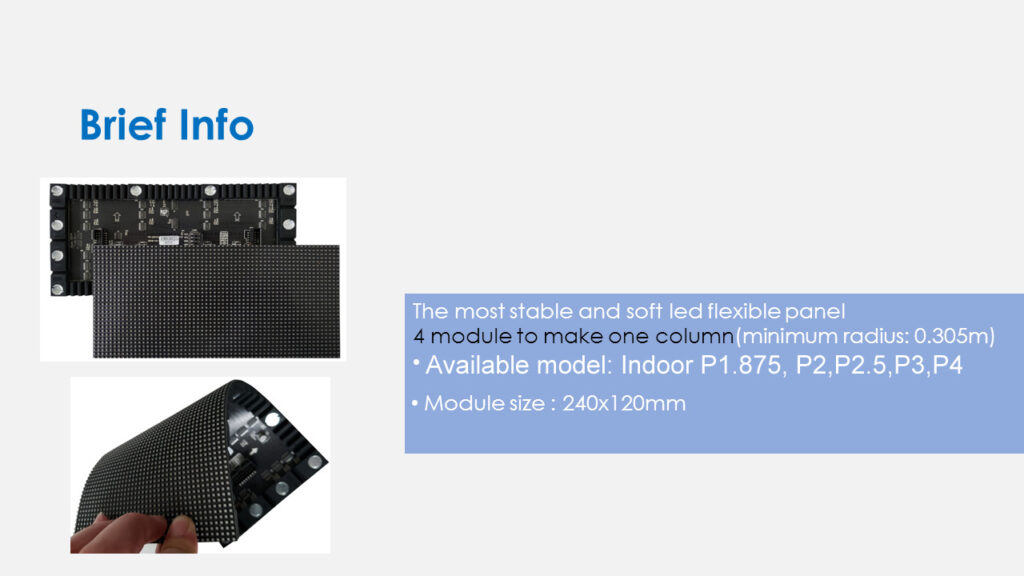

  1. Flexible module, can be made into any shape according to need.
  2. The mask is made of silica gel with no chromatic aberration.
  3. Ingenuity and beauty color performance.
  4. Cabinet size can be customized.

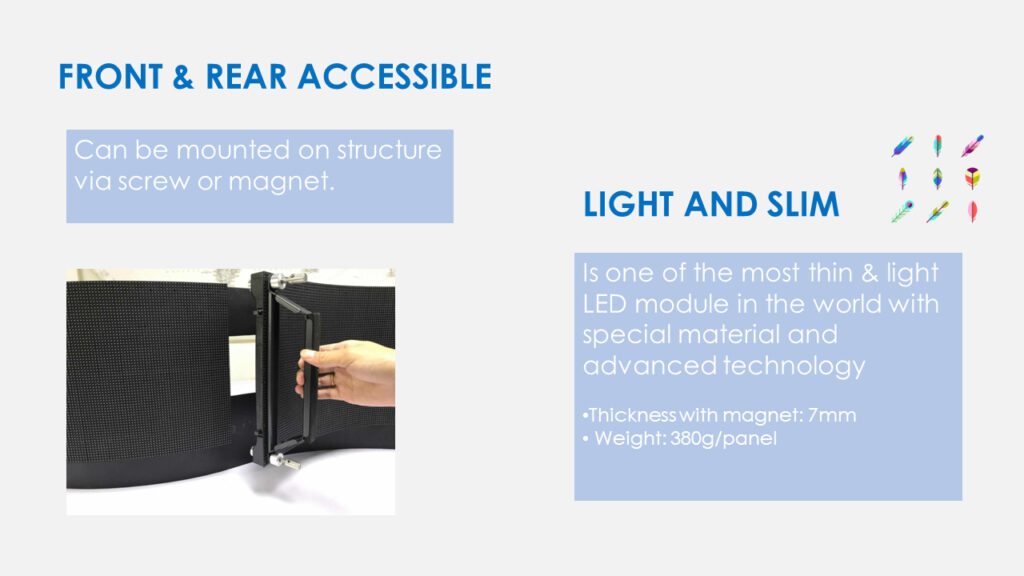

  5. Support front and back maintenance.
  6. Strong magnetic magnetic suction installation, the screen can be seamless assembly.
  7. Can be applied to a variety of installation methods, such as lifting, surface mount.

                                               Products Parameter

Model P1.875 P2 P2.5 P3 P4
Pixel Pitch(mm) 1.875mm 2.0mm 2.5mm 3mm 4mm
Pixel Configuration SMD1010 SMD1010 SMD2020 SMD2020 SMD2020
Pixel Density(pixel/sqm) 284444 250000 160000 111111 62500
Brightness(cd/sqm) 600 600 800 1000 1000
Scanning Method 1/32 1/30 1/32 1/24 1/15
Module Dimension(mm) 240*120 240*120 240*120 240*120 240*120
Cabinet Dimension(mm) 960*960 960*960 960*960 960*960 960*960
Cabinet Material Steel
Cabinet weight(kg) 46
Cabinet Resolution(pixels) 512*512 480*480 384*384 320*320 240*240
Refresh rate(HZ) 3840
Viewing angle H:160 V:120
Protection grade(fromt/back) IP30
Max power consumption (W/sqm) 462 380 380 450 450
Average power consumption(W/sqm) 182 150 150 180 180
Input Voltage(V) 100V or 240V, 50 or 60Hz
Grey Level 16bit
Working Temperature -20-50℃
Working Humidity 10%-90%

Call for Quote
